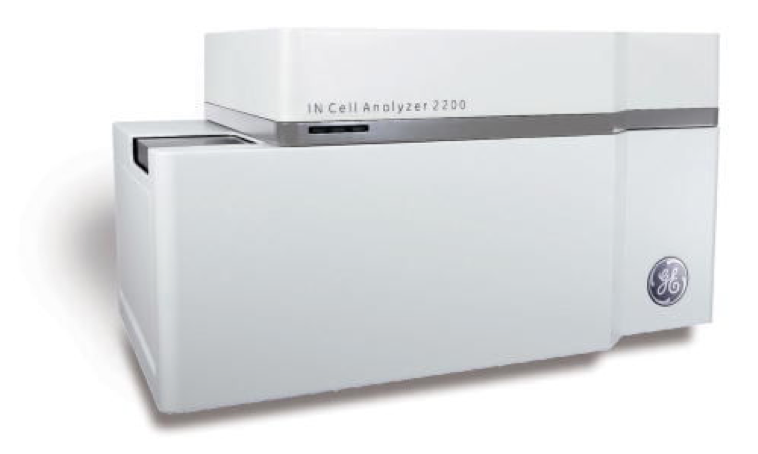

A flexible wide-field fluorescence cell imaging system suitable for a broad range of high-content assays:
- Brightfield, Phase, DIC and deconvolution
- Environmental control chamber with CO2 and temperature control
- Well plates and slides.
| Objective | NA | WD/mm | Brand | Material Ref. |
|---|---|---|---|---|
| 2X Plan Apo | 0.1 | 8.5 | Nikon | MRD00020,MRD00025 |
| 10X Plan Apo | 0.45 | 4 | Nikon | MRD00101,MRD00105 |
| 20X Plan Fluor ELWD | 0.45 | 7 | Nikon | MRH08230 |
| 40X Plan Apo Corr Coll | 0.95 | 0.14 | Nikon | MRD00405 |
Quad 1
| Filter | Excitation/nm | Emission/nm |
|---|---|---|
| DAPI | 380-400 | 410-460 |
| FITC | 460-490 | 500-522 |
| Cy3 | 528-555 | 575-620 |
| Cy5 | 620-643 | 662-696 |
Quad 3
| Filter | Excitation/nm | Emission/nm |
|---|---|---|
| CFP | 425-450 | 463-487 |
| YFP | 405-521 | 537-560 |
| Cy5 | 620-643 | 662-696 |
